    IEC60309-1 Vehicle Connectors And Plugs Fracture Capacity Vehicle Testing Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNQC1018
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

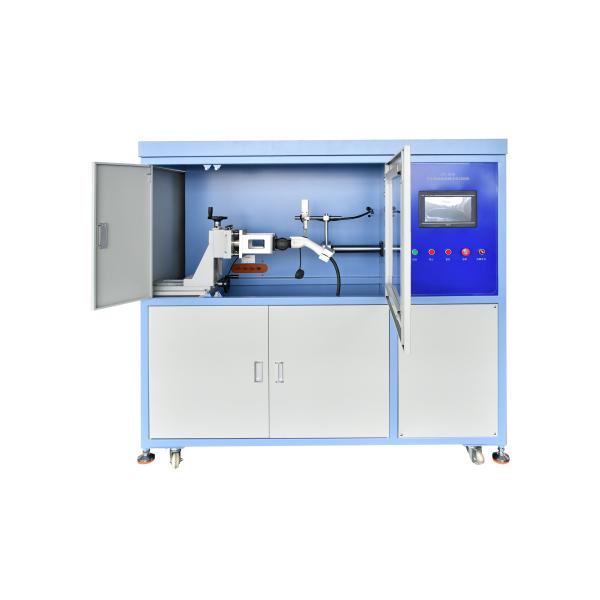

    IEC60309-1 Vehicle Connectors And Plugs Fracture Capacity Vehicle Testing Equipment


    IEC60309-1 Vehicle Connectors And Plugs Fracture Capacity Vehicle Testing Equipment


    Product Information:


    The Vehicle Connectors and Plugs Breakage Resistance Tester meets the requirements of standards such as IEC60309-1 clauses 20 and 21 and IEC62196-1 clauses 7.11 and 7.12.


    It is used to verify that electrical accessories such as electric vehicle charging interfaces, industrial plugs, sockets and couplers can withstand the mechanical, electrical and thermal stresses that occur during normal operation without excessive wear or other harmful effects.


    Technical Parameters:


    Applied standard

    IEC IEC60309-1

    Applied clause

    Clause 20 and 21

    Test station

    Single

    Control method

    PLC intelligent integrated control, with color humanized touch screen

    Drive mode

    Servo motor drive

    Sample clamping method

    Mechanical clamping, the position of clamping point can be adjustable along the 3-axis fixture

    Linear stroke

    0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)

    Conduction time

    0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)

    Speed of Insertion and Separation

    0-0.85m/s can be preset, default(0.8±0.1)m/s)

    Test frequency

    0-10 cycles/min, can be preset (3.75cycles/min=7.5 stoke/min)

    Test cycles

    0~999999 cycles, can be preset

    Load power

    External, providing standard required voltage, current and power factor, the load cabinet is optional

    Optional load cabinet

    Note: only with AC load cabinet, 0-70A, voltage 0-300V

    Test contents

    Device coupler/charging interface disconnect capability test

    Device coupler/charging interface normal operating life test

    Detection function

    Open circuit alarms can be implemented during load tests and cycles can be recorded in real time.

    Safety protection

    Ground protection, short circuit protection
