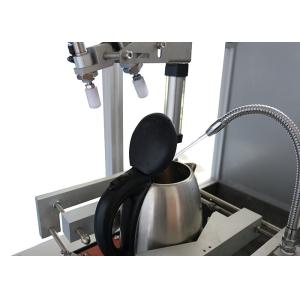

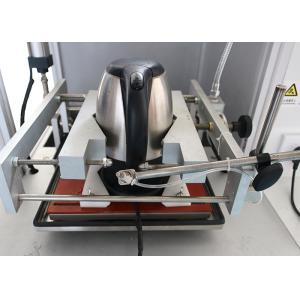

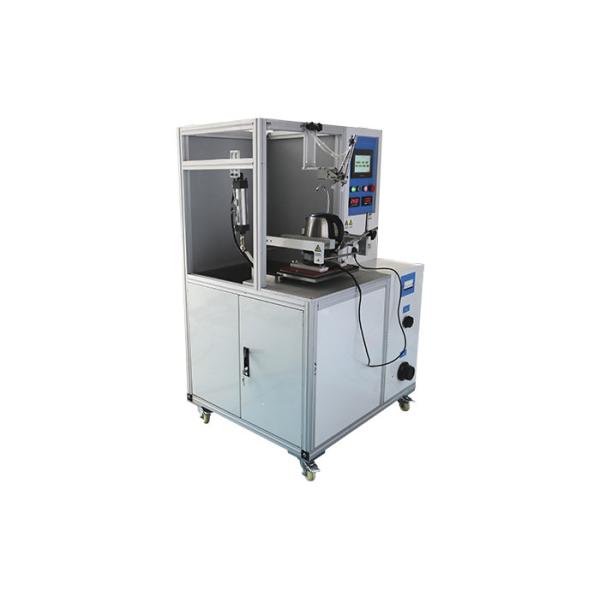

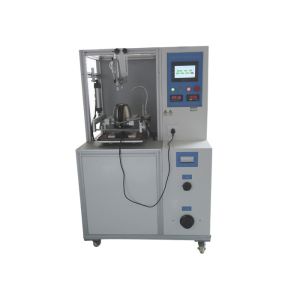

Cordless Kettle Dry Heating Boiling Insertion Withdrawn Automatic Testing Machine

Overview:

This integrated test equipment confirms to IEC60335-2-15 clause 19.3, 19.101, 19.102 and clause 22.103 standard requirements. It is used for the kettles’ dry heating test, water boiling test and insertion & withdraw with or without current test, it can be widely used in production line detection and laboratory measurement.

It aims at eliminating the fire dangerous caused by the designing of the electric circuit in abnormal work or wrong operation, so as to avoid mechanical properties damages due to electrical safety or anti-shock protection is damaged.

Testing Functions:

A. Water boiling test under constant voltage at 0.85 and 1.24 times rated power.

B. The water boiling test when the water injection is over heating elements (inside the kettle) or 10mm deep (the heating element is outside of the kettle).

C. The drying heating test (no water test, thermal circuit breaker does not work, short circuit) under constant voltage of 0.85 and 1.15 times rated power, with 2 reset circuit breakers, one of which is short circuit.

D. Drying test by 0.85 or 1.15 times rated power, inject water of 15±5°C for water cooling when the circuit breaker works within 2s. The water inside of the kettle is poured out after 1min, this test will be carried out for 100 times.

E. The pin of the cordless kettle is in series connection, external resistive load is in series connection with power supply, the circuit will generate times rated current under rated voltage, the kettle will do the insertion & withdraw test by a speed of 10 times/min, process load test for 10000 times, non-load test for 10000 times, the kettle can be in normal use after test. The purpose is to verify the electrical and mechanical damages to the structure of the kettle base which are generated during normal use will not cause dangerous.

Techinal Parameters:

Sinuo is an innovation manufacturing company, specializing in the research and development and sales of laboratory construction and testing equipment for electrical appliances (covering the construction of energy efficiency and performance laboratories, as well as supplementary waterproof testing laboratories, materials flame-retardant laboratories, basic general testing equipment, etc.), Sinuo aims to provide clients with complete laboratory construction, system integration, R&D, rectification and after-sales service, and strive to be the leader of one-stop service for laboratory construction in the field of electrical appliance testing.

Sinuo  products are composed of all kinds of testing equipments as per standards of IEC/ BS/ EN/VDE/UL/ ISO..., such as household appliances testing equipment, energy efficient testing laboratories and comprehensive performance test system for household appliances, battery testing equipment,  automotive testing equipment, luminaries testing equipment,IP code testing equipment, environmental test chamber, flammability test chambers, EMC testing equipment and etc.

Sinuo employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.

Sinuo cooperate with many research institutions and schools to enable our techincal capacities. Sinuo has two own factories, one is in Guangzhou, the other is in Dongguan, and authorized agents and representative offices in Korea, South Africa, Egypt,Pakistan and Philippines.

Sinuo combines all the R/D and production advantages, contributes to provide perfect, high-end and systematic electrical appliance testing laboratory solutions, products and services for corporate customers, universities and third-party laboratories. Our clients include Bureau Veritas, CSA, Intertek, TUV Rehiland, TUV SUD, SGS, etc.
