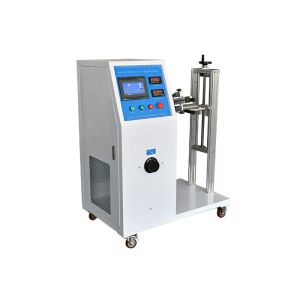

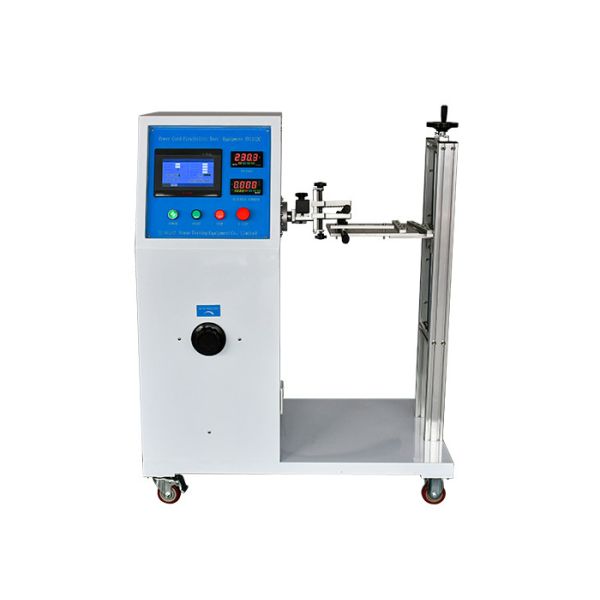

    IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1112C
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment


    IEC 60335-1 Clause 23.3 Internal Wiring Flexing Test Equipment


    Product Information:

    The Internal Wiring Flexing Test Equipment is designed and manufactured according to the standard requirements of Clause 23.3 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

    It is used to conduct flexing resistance test on the electrical connections and internal wires of different parts of the appliance that can move with each other in normal use or during user maintenance.


    Technical arameters:


    Applied standardIEC 60335-1
    Applied clause23.3
    Power SupplyAC220V, 50HZ
    Angle of Bending /Rotation0~360° (or 0~±180°), it can be preset on touch screen
    Test Speed0 to 60 times / min, it can be preset
    Test Cycles1~999999, it can be preset
    Electrical ControlPLC & 7” touch screen
    Drive MethodStepper motor
    Operation ModeIntelligent touch screen control (7 inches)
    Platform Liftable Stroke0-1000mm, manually adjustable by rotating the hand wheel
    Test StationOne
