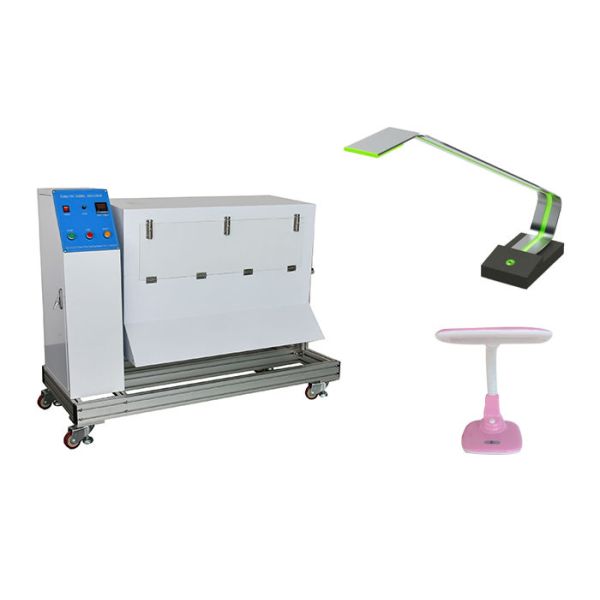

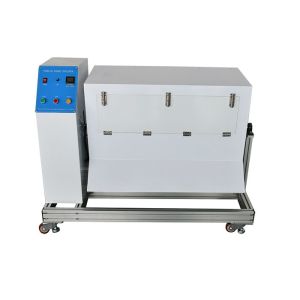

    IEC60068-2 Tumbling Barrel Free Fall Test Apparatus Button Control

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2123B
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC60068-2 Tumbling Barrel Free Fall Test Apparatus Button Control


    IEC60068-2 Tumbling Barrel Free Fall Test Apparatus button control


    Standards & Clauses:


    IEC60884-1:2006clause 24.2

    IEC60068-2-32:2006

    IEC60598-1:2014clause 4.13.6

    IEC60320-1:2007clause 23.2

    DIN VDE 0620-1:2010

    BS1363-1-2012<13A plugs,socket-outlets,adaptors and connection units Part1:Specification for rewirable and non-rewirable 13A fused plugs>


    Product Overview:


    This equipment uses the motor to drive the drum to do rotation movement, the sample to the specified height repeatedly dropped to the specified surface.
    Suitable for sag verification of lamps installed with plug sockets, non-removable connectors and plug type ballasts/transformers and power sockets.
    Mainly used for plug sockets, plug type ballast/transformer and power socket installation lamps, non-removable connectors.


    Structure:


    The test equipment consists of electric control cabinet and tumbling barrel. The test times can preset, and the test will be stopped automatically after the preset test times are completed.

    Equipment dimensions: about: 800 × 800 × 1100 (mm) W × D × H

    Equipment weight: 100kg


    Technical Parameters:


    ModelSN2123SN2123BSN2123C
    Test Station

    Single station, double stations can be customized


    Electrical Control MethodButton controlButton controlButton control
    Drive ModeMotorMotorMotor
    Tumbling Barrel MaterialThe side are 1.5mm high-quality steel plates, the upper and lower 3mm steel plates are placed on the 10-19mm wooden boards, the inclined sliding surface is the plastic laminated board, with triangular rubber pad.3mm high quality steel plateThe front and back are transparent plastic plates, and the upper ,lower and sides are 10~19mm thick plywood plates
    Rotation Speed5rpm5rpm5rpm
    Fall Speed10 times/ min10 times/ min10 times/ min
    Test Times0~9999 times, can be preset0~9999 times, can be preset0~9999 times, can be preset
    Drop Height500mm, can be customized500mm, can be customized500mm, can be customized
    Main SpecimenPlugs and sockets and similar electrical accessoriesPlug-in ballast/transformer and power socket mounted luminaireBritish standard plug and socket
    Standards Compliant

    IEC60068-2-32, IEC60884.1, EN50075

    GB2009.1-2008, GB2423.8

    IEC60598-1, VDE0620-1 figure 27

    GB7000.1figure 25,

    BS1363.1 figure 20, UL60730
