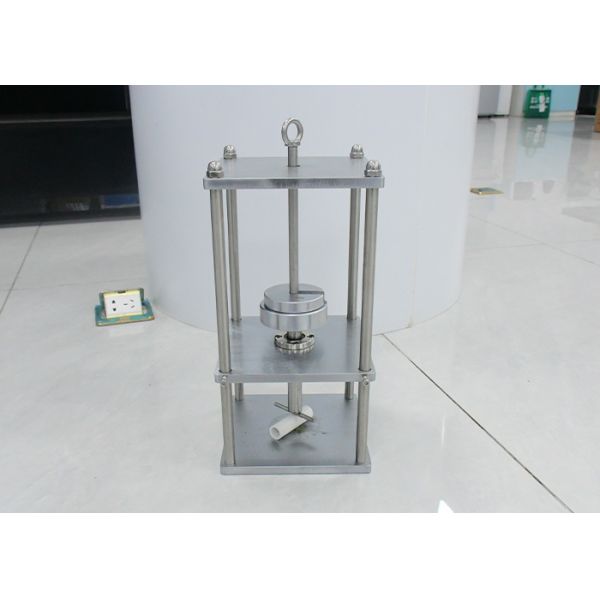

    IEC 61386-1 Figure 8 Heat Resistance Test Apparatus for Conduits and Corrugated Pipes


    IEC 61386-1 Figure 8 Heat Resistance Test Apparatus for Conduits and Corrugated Pipes


    Product information:


    The Test Apparatus for Resistance to Heat is specially designed for evaluating the heat resistance performance of semi-rigid conduits, flat casings, and PVC corrugated pipes. It determines the required deformation resistance under elevated temperatures, ensuring the product meets mandatory quality and safety standards.

    The test system complies with GB/T 14823.2, JG 3050, ZBG 33008, and IEC 61386-1 clause 12.2 & figure 8, making it suitable for laboratories, inspection centers, and conduit manufacturers that need to conduct standardized heat resistance tests.

    This apparatus is used together with a heating oven (oven not included), and the applied load weights are configured according to the designated standard requirements.


    Features:


    ✔ Complies with GB/T14823.2, JG3050, ZBG33008, IEC 61386-1

    ✔ Suitable for testing semi-rigid pipes, flat conduits, PVC corrugated wire conduits

    ✔ High-precision steel rod with standardized diameter

    ✔ Standard-specified load weights for accurate heat resistance measurement

    ✔ Simple structure, stable performance, ideal for routine quality inspection

    ✔ Compatible with various high-temperature ovens (oven not included)


    Technical parameters:


    ItemSpecification
    Applicable StandardsGB/T14823.2, JG3050 (Article 6.9, Fig.15), ZBG33008, IEC 61386-1 (Clause 12.2, Fig.8)
    Steel Rod DiameterΦ6 mm
    Load WeightsConfigured according to standard (weight includes rod weight)
    Required EquipmentMust be used with an oven (oven not included in quotation)
