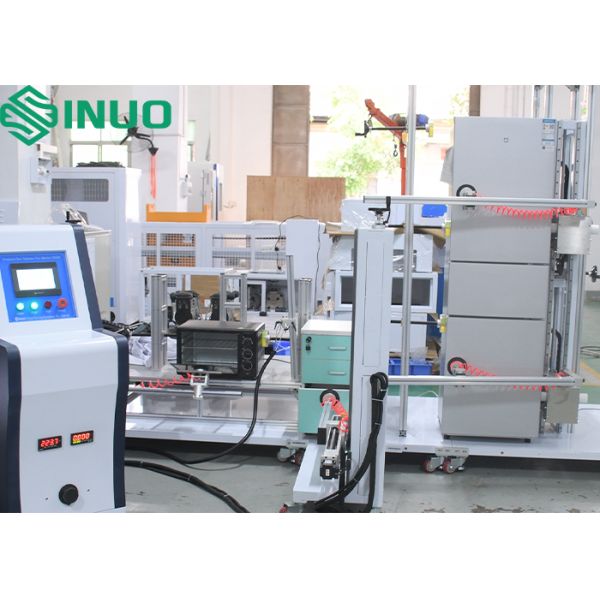

Intelligent Door Endurance Tester for Microwave and Refrigeration Appliances

Product information:

Standard: IEC 60335-2-25 clause 18, IEC60335-2-24:2017, etc.

Application:

1. The device is used for mechanical endurance test to door system includes a hinge structure , microwave seals and other related components of microwave ovens, ovens, refrigerators and freezers, etc.

2. The device is used for durability test of the interlocking device of the doors, also can be used to assist other tests for door repeated opening and closing operations, such as during refrigerator defrost test and refrigerant leakage test.

Test sample:

1.Microwave ovens, ovens

2. Refrigeration appliances (refrigerators and freezers).

Feature: The equipment adopts PLC and servo motor control, with all stainless steel mechanical arms, vacuum suction structure, standard TFT true color LCD touch screen, can preset test angle and speed, simulated a human hand to open and close the door of microwave ovens and similar equipment, achieve intelligent control. The machine frame is made of high grade aluminum alloy profile, and the mechanical arms are installed on the columns, can satisfy left open and upper open door endurance test of different size. The power supply socket has the function of detecting, which can judge whether the test sample is electrified; during load test, if the test sample is not electrified during the test, the equipment will be automatically shut down. This feature can be enabled on the demands.

Structure: The equipment combines of electrical control cabinet (including load voltage regulating device), frame and mechanical arms.

Equipment dimensions: approx.: (W*D*H) 2500 * 1300 * 2000 (mm)

Equipment weight: 350kg

Technical Parameters:

Sinuo is an innovation manufacturing company, specializing in the research and development and sales of laboratory construction and testing equipment for electrical appliances (covering the construction of energy efficiency and performance laboratories, as well as supplementary waterproof testing laboratories, materials flame-retardant laboratories, basic general testing equipment, etc.), Sinuo aims to provide clients with complete laboratory construction, system integration, R&D, rectification and after-sales service, and strive to be the leader of one-stop service for laboratory construction in the field of electrical appliance testing.

Sinuo  products are composed of all kinds of testing equipments as per standards of IEC/ BS/ EN/VDE/UL/ ISO..., such as household appliances testing equipment, energy efficient testing laboratories and comprehensive performance test system for household appliances, battery testing equipment,  automotive testing equipment, luminaries testing equipment,IP code testing equipment, environmental test chamber, flammability test chambers, EMC testing equipment and etc.

Sinuo employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.

Sinuo cooperate with many research institutions and schools to enable our techincal capacities. Sinuo has two own factories, one is in Guangzhou, the other is in Dongguan, and authorized agents and representative offices in Korea, South Africa, Egypt,Pakistan and Philippines.

Sinuo combines all the R/D and production advantages, contributes to provide perfect, high-end and systematic electrical appliance testing laboratory solutions, products and services for corporate customers, universities and third-party laboratories. Our clients include Bureau Veritas, CSA, Intertek, TUV Rehiland, TUV SUD, SGS, etc.
