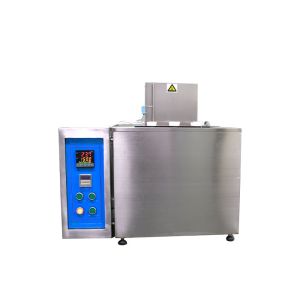

UL2594 Constant Temperature Water Bath Chamber Plastic Cable
Insulation Testing Equipment
Standard:
According to UL2594-2016.
Application:
The constant temperature water bath chamber is equipment designed
for testing the electrical performance of PVC plastic cables. An
instrument suitable for testing AC withstand voltage, insulation
resistance, water immersion capacitance increase rate, etc. on
wires and cables.
It can be used in situations where the insulation resistance
coefficient of 70°C or 90°C is specified in IEC502-83 "Measurement
of Extruded Solid Dielectric Insulated Power Cables with Rated
Voltage 1-30KV" or "National Standard for Plastic Cables".
This machine adopts a stainless steel inner tank, has a large
container volume, is easy to operate and has good temperature
stability. It is a plastic cable insulation testing equipment.
Features:
A constant temperature water bath chamber, also known as a water
bath incubator or water bath, is a laboratory equipment designed to
maintain a stable and precise temperature for samples immersed in a
water-filled chamber. It is commonly used in various scientific and
research applications, including biological, medical,
pharmaceutical, and chemical laboratories.
Key features and components of a typical constant temperature water
bath chamber include:
Chamber Construction: The water bath chamber is usually made of
stainless steel or other corrosion-resistant materials to withstand
the water and temperature conditions. It is designed to hold the
water and provide a stable environment for sample immersion.
Temperature Control: The chamber is equipped with a temperature
control system, typically a digital controller or thermostat, to
set and maintain a constant temperature. This system monitors the
water bath temperature and adjusts heating or cooling elements to
achieve the desired temperature.
Water Circulation: Many water bath chambers include a water
circulation system, such as a built-in pump or stirring mechanism.
This promotes even distribution of heat throughout the water bath,
ensuring uniform temperature throughout the chamber and better
temperature stability for the samples.
Temperature Display: The chamber features a temperature display,
often a digital readout, to provide real-time monitoring of the
water bath temperature. This allows users to easily observe and
confirm the set temperature during experiments or incubation
processes.
Sample Racks or Holders: The water bath chamber may include racks,
trays, or holders to accommodate the sample containers or vessels.
These racks ensure proper positioning and prevent sample containers
from directly touching the chamber walls or the heating/cooling
elements.
Safety Features: Safety measures are incorporated into the design
of the water bath chamber to prevent hazards, such as overheating
or electrical faults. These may include over-temperature
protection, low-water level detection, and safety cut-off features.
Constant temperature water bath chambers provide a controlled and
stable environment for various applications, such as incubating
cell cultures, conducting chemical reactions, thawing frozen
samples, or maintaining samples at a specific temperature for
extended periods. They offer precise temperature control, uniform
heat distribution, and a stable platform for reliable experimental
results.
When using a constant temperature water bath chamber, it is
important to follow the manufacturer's instructions, including
temperature limits, operating procedures, and maintenance
guidelines. Additionally, appropriate precautions should be taken
to ensure the safety of users and the integrity of the samples
being incubated or tested.
Technical specifications:
| Constant temperature range | If the room temperature is lower than 10℃, 10-100℃ If the room temperature is higher than 10℃, the room temperature is
-100℃ |
| Temperature fluctuation range | ±1℃ |
| Input voltage | AC380V,12KW |
| Heating control method | Non-contact solid-state relay |
| Temperature measuring thermocouple | Adopt waterproof high-precision PT100 |
| Cycle mode | Built-in high-temperature pump circulation method |
| Effective volume | DWH=900×1100×600mm, inner box material is stainless steel 304 |
| Test hole | There are two test holes each with a diameter of 60mm and 100mm. |
