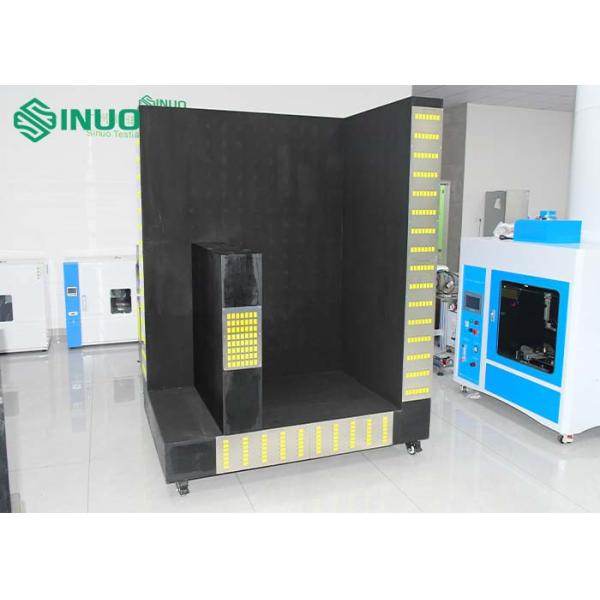

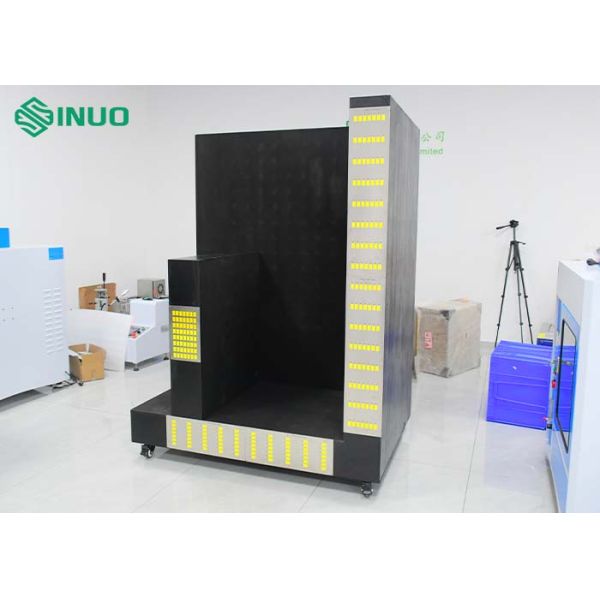

IEC 60335-1 Cooking Range Test Corner 313 Measuring Points Dimensions Can Be Customized

Product information:

This test corner conforms to the standard requirement of IEC 60335-1 clause 11.2, IEC60065 clause 7, etc. It is designed and manufactured to provide the required environment for the temperature rising test of all kinds of electrical, electrical products. It can be customized according to the different testing samples.

The number on every connector socket and the test point number on the test corner are corresponding.

This test corner adopts K-Thermocouple for measuring.

Technical parameters:

1. Inner dimensions: 1300x800x1700mm length*width*height,

Outer dimensions: 1450x950x1850mm;

2. Size of movable plate: 800*900*150mm;

3. Total number of temperature measuring points: 313 (side plate 77, bottom plate 70, back plate 110, movable plate 56);

4. Center distance of temperature measuring points: 100*100mm, square;

5. Temperature measuring brass sheets: diameter 15mm, thickness 1mm;

6. Linan plywood: plywood with a thickness of about 20mm, matte black paint on both sides;

7. Contains copper sheets;

8. OMEGA thermocouple K type (pre-installed in the test board);

9. 6 pcs of 2.5-inch casters with brakes;

10. Contains thermocouple connection sockets

Sinuo is an innovation manufacturing company, specializing in the research and development and sales of laboratory construction and testing equipment for electrical appliances (covering the construction of energy efficiency and performance laboratories, as well as supplementary waterproof testing laboratories, materials flame-retardant laboratories, basic general testing equipment, etc.), Sinuo aims to provide clients with complete laboratory construction, system integration, R&D, rectification and after-sales service, and strive to be the leader of one-stop service for laboratory construction in the field of electrical appliance testing.

Sinuo  products are composed of all kinds of testing equipments as per standards of IEC/ BS/ EN/VDE/UL/ ISO..., such as household appliances testing equipment, energy efficient testing laboratories and comprehensive performance test system for household appliances, battery testing equipment,  automotive testing equipment, luminaries testing equipment,IP code testing equipment, environmental test chamber, flammability test chambers, EMC testing equipment and etc.

Sinuo employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.

Sinuo cooperate with many research institutions and schools to enable our techincal capacities. Sinuo has two own factories, one is in Guangzhou, the other is in Dongguan, and authorized agents and representative offices in Korea, South Africa, Egypt,Pakistan and Philippines.

Sinuo combines all the R/D and production advantages, contributes to provide perfect, high-end and systematic electrical appliance testing laboratory solutions, products and services for corporate customers, universities and third-party laboratories. Our clients include Bureau Veritas, CSA, Intertek, TUV Rehiland, TUV SUD, SGS, etc.
